Super Purchasing for Beer Bottle Washing Machine - Model DSB-400H High Speed Double Line Four Sides Sealing Automatic Packing Machine – Cmore Detail:

Items

Parameters

Model

DSB-400H

Production capacity

150-300 bags/min

Packing size

L:60-150 mm W:60-200 mm H:1-6 mm

Air compressed

0.3m3/min

Air pressure

0.5-0.7Mpa

Rated voltage

AC380V 50Hz

Total power

23.5kw

Weight

500Kg

Overall dimension

6500×2260×2155 mm(L×W×H)

ht1

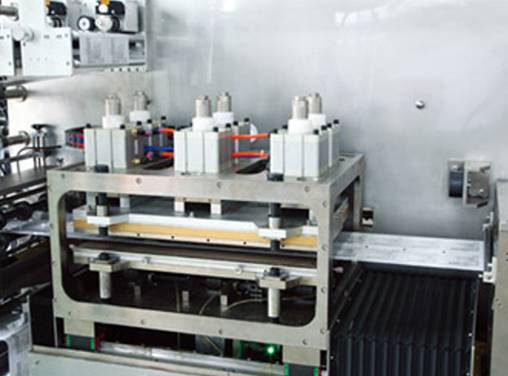

ht2
ht3

The whole machine adopts the man-machine interface, PLC programmable control, the transmission parts are using servo motor independent control, total used twelve servo motors drive. High speed turntable multi pieces feeding, double servo feeding, servo unwinding, package material of upper and lower remark detection, batch printing, reciprocating sealing, easy opening, rolling and cutting waste edge, cut off the waste and collecting device, hob cutting and finished products delivery mechanism etc. The whole machine runs smoothly, the product specification is convenient to replace, and the parameters one button set. The machine superior performance, high degree of automation, is the preferred equipment for automatic packaging plaster.

A. Touch screen control, simple operation.

B. Reciprocating heat sealing, the standard paste size can be heat sealed 10 bags at a time, the sealing is smooth, firm and beautiful.

C. The packaging film tape joint is automatically detected and rejected.

D. The code machine misses and automatically rejects.

E. Missing pieces will automatically detect rejection.

F. No film will alarm shutdown.

G. It can be applied to a variety of specifications, and can be equipped with 1-5 pieces of automatic feeding.

H. Ethernet remote control. Can modify the program.


Product detail pictures:

Super Purchasing for Beer Bottle Washing Machine - Model DSB-400H High Speed Double Line Four Sides Sealing Automatic Packing Machine – Cmore detail pictures

Super Purchasing for Beer Bottle Washing Machine - Model DSB-400H High Speed Double Line Four Sides Sealing Automatic Packing Machine – Cmore detail pictures

Super Purchasing for Beer Bottle Washing Machine - Model DSB-400H High Speed Double Line Four Sides Sealing Automatic Packing Machine – Cmore detail pictures

Super Purchasing for Beer Bottle Washing Machine - Model DSB-400H High Speed Double Line Four Sides Sealing Automatic Packing Machine – Cmore detail pictures
